Product may differ from image


IN: 0..100 kHz - OUT: 0..10 V / (0)4..20 mA
Art.No.: 44275
Alternative product:    6644275
Weight: 0.05 kg
In production
 Product Comparison
List price per piece:

You might also like

INPUT: 0...1, 0...10, 0...100 kHz
OUTPUT: 0...10 V DC, 0...20 mA, 4...20 mA
Screw terminals
Input and output galvanically separated
Technical Data
Operating voltage 24 V DC ±20%
Operating current max. 80 mA
Response time max. 350 ms
Tolerance 0.5% from end value
General data
Test isolation voltage 2.5 kV
Mounting method DIN-rail mountable (EN 60715)
Temperature range -25...+50 °C
Dimensions H×W×D 90×12.4×70 mm

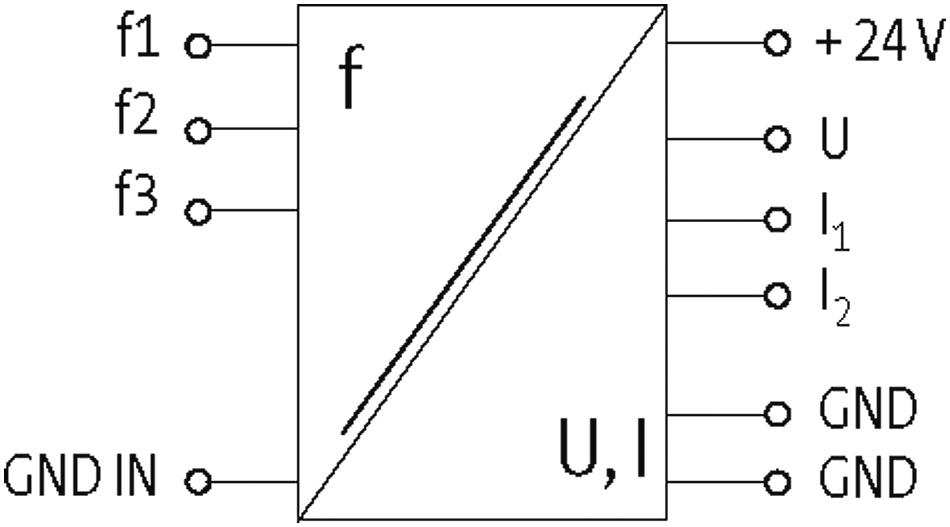

Functional description The new frequency converter in the slim MIRO housing can be universally used. The frequency that is applied on the three inputs, will be galvanically isolated, transformed and is available as analog signal on all three outputs.
Voltage inputs
Input voltage 10...30 V DC
Voltage output signals
Output signal 0...10 V DC, 0...20 mA, 4...20 mA
Current input signals
Input current 6...25 mA
Input resistor approx. 1.2 kΩ
Commercial data
country of origin CZ
customs tariff number 85437090
EAN 4048879028301
eClass 27210990
Packaging unit 1
Data Regarding Article:
  • Download Data Sheet
  • Download Information: EU declaration of conformity 44275_1820-04.16_CE_Z_D.PDF
  • Download Information: MTTF Report 44275_SN29500(40°C)-BERECHNUNGV1.4_MTTF_P_A.PDF
