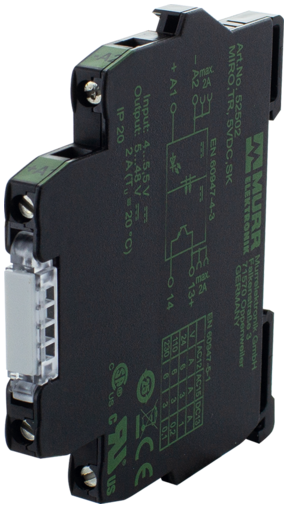

MIRO TR 5VDC SK OPTO-COUPLER MODULE
Product may differ from image

MIRO TR 5VDC SK OPTO-COUPLER MODULE

IN: 5,5 VDC - OUT: 48 VDC / 2 A
Art.No.: 52502
Alternative product:    6652502
Weight: 0.024 kg
Available
 Product Comparison
List price per piece:

You might also like

Transistor 2 A
5 V DC
Screw terminals
cURus
cCSAus
General data
Test isolation voltage 2.5 kV
Mounting method DIN-rail mountable (EN 60715)
Housing Black plastic, flame retardant
Temperature range -20...+60 °C
Dimensions H×W×D 78×6.2×70 mm
Output
Switching voltage 5...48 V DC
Switching current per output 1 mA...2 A
Saturation voltage (across output) max. 0.3 V DC
Leakage current (output is open) max. 10 µA
Switching time ON/OFF 1/5 ms
Switching frequency max. 10/1 Hz (resist./ind.)
Input
Voltage range ON 4...5.5 V DC
Voltage range OFF 0...2 V DC
Control current 6 mA
LED display LED (yellow)
Commercial data
country of origin CZ
customs tariff number 85414090
EAN 4048879026925
eClass 27371604
Packaging unit 1

Data Regarding Article:
  • Download Data Sheet
  • Download Approval: CSA CA 52502_080128-0-000_C3211-07_CSA_Z_B.PDF
  • Download Approval: CSA US 52502_080128-0-000_C3211-07_CSAU_Z_B.PDF
  • Download Approval: UL Registered CA 52502_E140415-NKCR8_URC_Z_D.PDF
  • Download Approval: UL Registered US 52502_E140415-NKCR2_UR_Z_D.PDF
  • Download Construction files: DXF 52002_DXF_X_A.ZIP
  • Download Construction files: P8 52502_P8_2_60.ZIP
  • Download Construction files: STP 52002_STP_X_A.ZIP
  • Download Information: EU declaration of conformity 52502_9805-04.16_CE_Z_B.PDF
  • Download Information: MTTF Report 52502_SN29500(40°C)-BERECHNUNGV1.4_MTTF_P_A.PDF
