MVP12, 4XM12, 5POLE, PLUGGABLE CABLE

15.0m PUR/PVC 8x0,34+5x0,75

Art.No.: 27074
Weight: 3.036 kg
Country of origin:  CZ
Contact Us for Availability
List price per piece:
Download to the Data Cart Download to Easy-Import-Export

Description


4-way, 5-pole
PUR/PVC
potentially separated
with LED for digital PNP-signals 24 V DC
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
Certificate
Certificate

Electrical data | Supply
Operating voltage DC 24 V
Operating voltage DC min. 18 V
Operating voltage DC max. 30 V
Current operating per contact max. 4 A
Total current at 1 time current feed-in max. 8 A
Total current at 2 times current feed-in max. 16 A
Industrial communication
Number of signals per port 2
Installation | Connection
Mounting set M12 x 1
Device protection | Electrical
Degree of protection (EN IEC 60529) IP65, IP67
Additional condition protection degree inserted, screwed
Device protection | Media
Flame resistance flame retardant
Mechanical data | Material data
Material housing PBT
Mechanical data | Mounting data
Mounting method Schraubgewinde
Height 100 mm
Width 50,2 mm
Depth 17 mm
Environmental characteristics | Climatic
Operating temperature min. -20 °C
Operating temperature max. 80 °C

Cable
No./diameter of wires 8× 0.34 + 5× 0.75 mm²
Wire isolation PVC
C-track properties 1.5 Mio.
Outer Ø 9.2 mm ±5%
Cable number 374
Color jacket gray
Jacket Color gray
Temperature range (fixed) -30...+80 °C
Temperature range (mobile) -30...+80 °C
Bend radius (fixed) 10× outer Ø
Bend radius (moving) 12× outer Ø
Material jacket PUR/PVC

Connection type 1
Family construction form free cable end
Color contact carrier gray
No. of poles 13
Connection type 2
Family construction form M12
Gender female
Color contact carrier black
Coding A
No. of poles 5

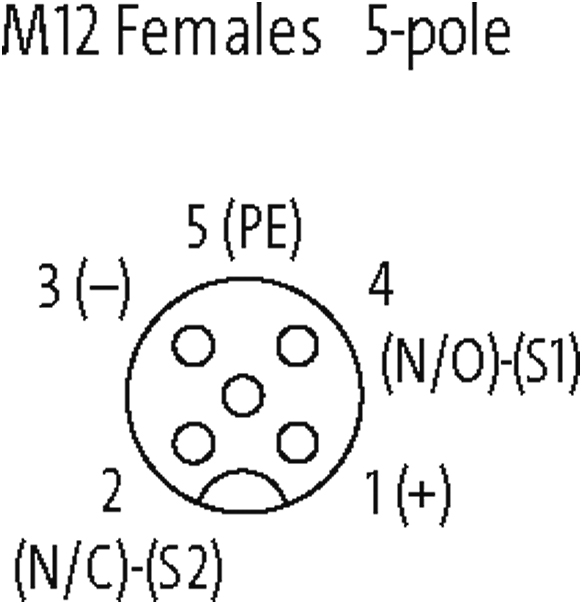

PIN 1 +
PIN 2 NC S 2
PIN 3 -
PIN 4 NO S 1
PIN 5 PE

ECLASS-6.0 27279219
ECLASS-6.1 27279219
ECLASS-7.0 27279219
ECLASS-8.0 27279219
ECLASS-9.0 27440108
ECLASS-10.1 27440108
ECLASS-11.1 27440108
ECLASS-12.0 27440108
ETIM-5.0 EC002585
customs tariff number 85444290
GTIN 4048879064286
Packaging unit 1
