MVP12, 6XM12, 5POLE, PLUG. CAP SCT.
Product may differ from image

MVP12, 6XM12, 5POLE, PLUG. CAP SCT.

Plug. cap, field-wireable via screw terminals
Art.No.: 27774
Weight: 0.123 kg
Available
 Product Comparison
List price per piece:
6-way, 5-pole
Screw plug-in terminals
Potential separation as option
with LED for digital PNP-signals 24 V DC
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Approvals
Approvals
Technical Data
Operating voltage 24 V DC
Operating current per contact max. 4 A
Locking of ports Screw thread (M12×1 mm)
Connection Screw plug-in terminals: max. 1.5 mm² (AWG 16)
Protection IP67 inserted and tightened (EN 60529)
Housing Plastic, flame retardant
Signal per port 2
Total current max. 2× 8 A
General data
Temperature range -20...+80 °C

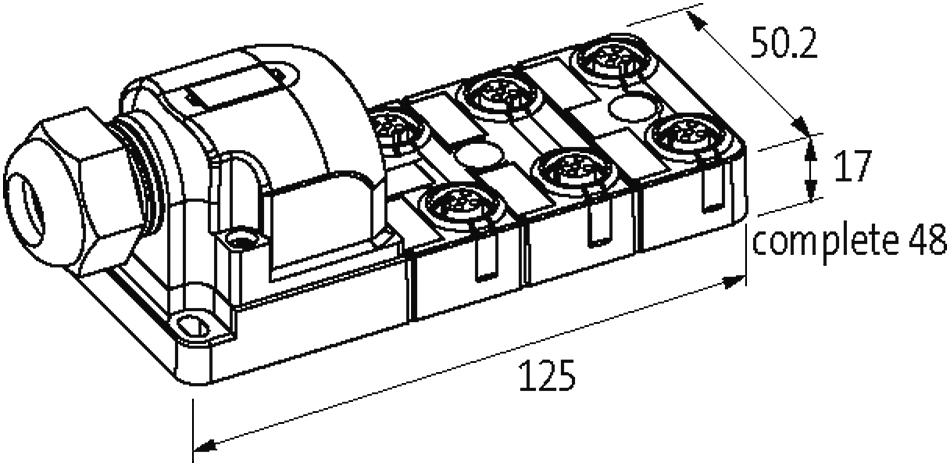

Dimensions H×W×D 125×50.2×17 mm
Contact Layout
PIN 1 (+)
PIN 2 (NC)/(S2)
PIN 3 (-)
PIN 4 (NO)/(S1)
PIN 5 (Earth)
LED (green): Power / LED (yellow): (S1/S2)
Commercial data
country of origin DE
customs tariff number 85369010
EAN 4048879063296
eClass 27279219
Packaging unit 1.000

Data Regarding Article:
  • Download Data Sheet
  • Download Approval: UL Listed CA 27774_E201820_NRAQ7_ULC_Z_A.PDF
  • Download Approval: UL Listed US 27774_E201820-NRAQ_UL_Z_B.PDF
  • Download Construction files: DXF 27774_DXF_X_A.ZIP
  • Download Construction files: STP 27774_STP_X_A.ZIP
  • Download Document: Installation guide 27773_INA_2_11.PDF
  • Download Information: EU declaration of conformity 27774_11-06.17_CE_Z_A.PDF
  • Download Information: MTTF Report 27774_SN29500(40°C)-BERECHNUNG_MTTF_P_A.PDF
